3-dimensional structure of hemoglobin. The four subunits are shown in red and yellow, and the heme groups in green.

Hemoglobin or haemoglobin (frequently abbreviated as Hb) is the iron-containing oxygen-transport metalloprotein in the red cells of the blood in mammals and other animals. Hemoglobin in vertebrates transports oxygen from the lungs to the rest of the body, such as to the muscles, where it releases the oxygen load. Hemoglobin also has a variety of other gas-transport and effect-modulation duties, which vary from species to species, and which in invertebrates may be quite diverse.

The name hemoglobin is the concatenation of heme and globin, reflecting the fact that each subunit of hemoglobin is a globular protein with an embedded heme (or haem) group; each heme group contains an iron atom, and this is responsible for the binding of oxygen. The most common types of hemoglobin contains four such subunits, each with one heme group.

Mutations in the genes for the hemoglobin protein in humans result in a group of hereditary diseases termed the hemoglobinopathies, the most common members of which are sickle-cell disease and thalassemia. Historically in human medicine, hemaglobinopathies were the first diseases to be understood in mechanism of dysfunction, down to the molecular level.


Heme group

The hemoglobin molecule in humans is an assembly of four globular protein subunits. Each subunit is composed of a protein chain tightly associated with a non-protein heme group.

Each individual protein chain arranges in a set of alpha-helix structural segments connected together in a "myoglobin fold" arrangement, so called because this arrangement is the same folding motif used in the heme/globin proteins. This folding pattern contains a pocket which is suitable to strongly bind the heme group.

A heme group consists of an iron atom held in a heterocyclic ring, known as a porphyrin. This iron atom is the site of oxygen binding. The iron atom is bonded equally to all four nitrogens in the center of the ring, which lie in one plane. Two additional bonds perpendicular to the plane on each side can be formed with the iron to a fifth and sixth bonding position, one connected strongly to the protein, the other available for binding of an oxygen molecule. The iron atom may either be in the Fe2+ or Fe3+ state, but ferrihemoglobin (methemoglobin) (Fe3+) cannot bind oxygen.

The Fe2+ in hemoglobin may exist in either a high-spin (deoxygenated) or low-spin (oxygenated) state, according to population of the iron (II) d-orbital structure with its 6 available d electrons, as understood in crystal field theory. With the binding of an oxygen molecule as a sixth ligand to iron, the iron (II) atom finds itself in a octahedral field (defined by the six ligand points of the four porphyrin ring nitrogens, the histamine nitrogen, and the O2). In these circumstances, with strong-field ligands, the five d-orbitals (these are the “3d” orbitals of the iron) undergo a splitting in energy between two of the d-orbitals which point directly in the direction of the ligands (dz2 and dx2-y2 orbitals, hybridized in these circumstances into two eg orbitals), and three of the d-orbitals which are pointed in off-directions (the dxy ,dxz, and dyz, hybridized in these circumstances into three t2g orbitals).

When oxygen is bound to Fe2+ in heme, all 6 d-electrons of the iron atom are forced into the three lower-energy t2g orbitals, where they must all be paired (see crystal field theory for diagram). This produces the “low-spin” state of oxyhemoglobin. The sharp high-energy of transition between the t2g and empty eg states of d-orbital electrons in oxyhemoglobin is responsible for the bright red color of the substance. When oxygen leaves, the Fe2+ is allowed to move out of the porphyrin ring plane, away from its five ligands toward the empty space formerly occupied by the O2, and in these circumstances eg orbital energies drop and t2g electrons move into them. This causes the iron atom to expand and increase its net spin, as d-orbitals become populated with unpaired electrons. In these circumstances, the absorption spectrum becomes broader, with smaller transition levels, producing the dark color of deoxyhemoglobin.

In adult humans, the most common hemoglobin type is a tetramer (which contains 4 subunit proteins) called hemoglobin A, consisting of two α and two β subunits non-covalently bound, each made of 141 and 146 amino acid residues, respectively. This is denoted as α2β2. The subunits are structurally similar and about the same size. Each subunit has a molecular weight of about 16,000 daltons, for a total molecular weight of the tetramer of about 64,000 daltons. Haemoglobin A is the most intensively studied of the haemoglobin molecules.

The four polypeptide chains are bound to each other by salt bridges, hydrogen bonds and hydrophobic interaction. There are two kinds of contacts between the α and β chains: α1β1 and α1β2.

Types of haemoglobins in humans

hemoglobin, alpha 1
Symbol(s): HBA1
Locus: 16 p13.3
EC number [1]
EntrezGene 3039
OMIM 141800
RefSeq NM_000558
UniProt Q3MIF5
hemoglobin, alpha 2
Symbol(s): HBA2
Locus: 16 p13.3
EC number [2]
EntrezGene 3040
OMIM 141850
RefSeq NM_000517
UniProt [3]
hemoglobin, beta
Symbol(s): HBB
Locus: 11 p15.5
EC number [4]
EntrezGene 3043
OMIM 141900
RefSeq NM_000518
UniProt P68871

In the embryo:

  • Gower 1 (ξ2ε2)
  • Gower 2 (α2ε2) (PDB 1A9W)
  • Haemoglobin Portland (ξ2γ2)

In the fetus:

  • Haemoglobin F2γ2) (PDB 1FDH)

In adults:

  • Haemoglobin A (α2β2) (PDB 1BZ0) - The most common type.
  • Haemaglobin A22δ2) - δ chain synthesis begins late in the third trimester and in adults, it has a normal level of 2.5%
  • Haemoglobin F2γ2) - In adults Haemoglobin F is restricted to a limited population of red cells called F cells.

Binding of ligands

Binding and release of ligands induces a conformational (structural) change in hemoglobin. Here, the binding and release of oxygen illustrates the structural differences between oxy- and deoxyhemoglobin, respectively.

As discussed above, when oxygen is bound to Fe2+ in heme, all 6 d-electrons are forced into three lower-energy t2g orbitals, where they are all paired. This causes contraction of the iron atom, and causes it to move back into the center of the porphyrin ring plane (see moving diagram). At the same time, the porphyrin ring plane itself is pushed away from the oxygen and toward the histamine interacting at the other pole of the iron. The interaction here forces the ring plane sideways toward the outside of the tetramer, and also induces a strain on the protein helix containing the histamine, as it moves nearer the iron. This causes a tug on this peptide strand which tends to open up heme units in the remainder of the molecule, so that there is more room for oxygen to bind at their heme sites.

In the tetrameric form of normal adult hemoglobin, the binding of oxygen is thus a cooperative process. The binding affinity of hemoglobin for oxygen is increased by the oxygen saturation of the molecule, with the first oxygens bound influencing the shape of the binding sites for the next oxygens, in a way favorable for binding. This positive cooperative binding is achieved through steric conformational changes of the hemoglobin protein complex as discussed above, i.e. when one subunit protein in hemoglobin becomes oxygenated, this induces a conformational or structural change in the whole complex, causing the other subunits to gain an increased affinity for oxygen. As a consequence, the oxygen binding curve of hemoglobin is sigmoidal, or S-shaped, as opposed to the normal hyperbolic curve associated with noncooperative binding.

Hemoglobin's oxygen-binding capacity is decreased in the presence of carbon monoxide because both gases compete for the same binding sites on hemoglobin, carbon monoxide binding preferentially in place of oxygen. Carbon dioxide occupies a different binding site on the hemoglobin. Through the enzyme carbonic anhydrase, carbon dioxide reacts with water to give carbonic acid, which decomposes into bicarbonate and protons:

CO2 + H2O → H2CO3 → HCO3- + H+

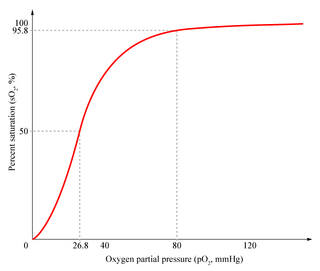

The sigmoidal shape of hemoglobin's oxygen-dissociation curve results from cooperative binding of oxygen to hemoglobin.

Hence blood with high carbon dioxide levels is also lower in pH (more acidic). Hemoglobin can bind protons and carbon dioxide which causes a conformational change in the protein and facilitates the release of oxygen. Protons bind at various places along the protein, and carbon dioxide binds at the alpha-amino group forming carbamate. Conversely, when the carbon dioxide levels in the blood decrease (i.e., in the lung capillaries), carbon dioxide and protons are released from hemoglobin, increasing the oxygen affinity of the protein. This control of hemoglobin's affinity for oxygen by the binding and release of carbon dioxide and acid, is known as the Bohr effect.

The binding of oxygen is affected by molecules such as carbon monoxide (CO) (for example from tobacco smoking, cars and furnaces). CO competes with oxygen at the heme binding site. Hemoglobin binding affinity for CO is 200 times greater than its affinity for oxygen, meaning that small amounts of CO dramatically reduces hemoglobin's ability to transport oxygen. When hemoglobin combines with CO, it forms a very bright red compound called carboxyhemoglobin. When inspired air contains CO levels as low as 0.02%, headache and nausea occur; if the CO concentration is increased to 0.1%, unconsciousness will follow. In heavy smokers, up to 20% of the oxygen-active sites can be blocked by CO.

In similar fashion, hemoglobin also has competitive binding affinity for cyanide (CN-), sulfur monoxide (SO), nitrogen dioxide (NO2), and sulfide (S2-), including hydrogen sulfide (H2S). All of these bind to iron in heme without changing its oxidation state, but they nevertheless inhibit oxygen-binding, causing grave toxicity.

The iron atom in the heme group must be in the Fe2+ oxidation state to support oxygen and other gases' binding and transport. Oxidation to Fe3+ state converts hemoglobin into hemiglobin or methemoglobin (pronounced "MET-hemoglobin"), which cannot bind oxygen. Hemoglobin in normal red blood cells is protected by a reduction system to keep this from happening. Nitrogen dioxide and nitrous oxide are capable of converting a small fraction of hemoglobin to methemoglobin, however this is not usually of medical importance (nitrogen dioxide is poisonous by other mechanisms, and nitrous oxide is routinely used in surgical anesthesia in most people without undue methemoglobin buildup).

In people acclimated to high altitudes, the concentration of 2,3-bisphosphoglycerate (2,3-BPG) in the blood is increased, which allows these individuals to deliver a larger amount of oxygen to tissues under conditions of lower oxygen tension. This phenomenon, where molecule Y affects the binding of molecule X to a transport molecule Z, is called a heterotropic allosteric effect.

A variant hemoglobin, called fetal hemoglobin (HbF, α2γ2), is found in the developing fetus, and binds oxygen with greater affinity than adult hemoglobin. This means that the oxygen binding curve for fetal hemoglobin is left-shifted (i.e., a higher percentage of hemoglobin has oxygen bound to it at lower oxygen tension), in comparison to that of adult hemoglobin. As a result, fetal blood in the placenta is able to take oxygen from maternal blood.

Degradation of hemoglobin in vertebrate animals

When red cells reach the end of their life due to aging or defects, they are broken down, and the hemoglobin molecule broken up and the iron recycled. When the porphyrin ring is broken up, the fragments are normally secreted in the bile by the liver. The major final product of heme degradation is bilirubin. Increased levels of this chemical are detected in the blood if red cells are being destroyed more rapidly than usual. Improperly degraded hemoglobin protein or hemoglobin that has been released from the blood cells too rapidly can clog small blood vessels, especially the delicate blood filtering vessels of the kidneys, causing kidney damage.

Role in disease

Decreased levels of hemoglobin, with or without an absolute decrease of red blood cells, leads to symptoms of anemia. Anemia has many different causes, although iron deficiency and its resultant iron deficiency anemia are the most common causes in the Western world. As absence of iron decreases heme synthesis, red blood cells in iron deficiency anemia are hypochromic (lacking the red hemoglobin pigment) and microcytic (smaller than normal). Other anemias are rarer. In hemolysis (accelerated breakdown of red blood cells), associated jaundice is caused by the hemoglobin metabolite bilirubin, and the circulating hemoglobin can cause renal failure.

Mutations in the globin chain are associated with the hemoglobinopathies, such as sickle-cell disease and thalassemia.

There is a group of genetic disorders, known as the porphyrias that are characterized by errors in metabolic pathways of heme synthesis. King George III of the United Kingdom was probably the most famous porphyria sufferer.

To a small extent, hemoglobin A slowly combines with glucose at a certain location in the molecule. The resulting molecule is often referred to as Hb A1c. As the concentration of glucose in the blood increases, the percentage of Hb A that turns into Hb A1c increases. In diabetics whose glucose usually runs high, the percent Hb A1c also runs high. Because of the slow rate of Hb A combination with glucose, the Hb A1c percentage is representative of glucose level in the blood averaged over a longer time (the half-life of red blood cells, which is typically 50-55 days).

Diagnostic use

Hemoglobin levels are amongst the most commonly performed blood tests, usually as part of a full blood count or complete blood count. Results are reported in g/L, g/dL or mol/L. For conversion, 1 g/dL is 0.621 mmol/L. If the total hemoglobin concentration in the blood falls below a set point, this is called anemia. Anemias are further subclassified by the size of the red blood cells, which are the cells which contain hemoglobin in vertebrates. They can be classified as microcytic (small sized red blood cells), normocytic (normal sized red blood cells), or macrocytic (large sized red blood cells).

Glucose levels in blood can vary widely each hour, so one or only a few samples from a patient analyzed for glucose may not be representative of glucose control in the long run. For this reason a blood sample may be analyzed for Hb A1c level, which is more representative of glucose control averaged over a longer time period (determined by the half-life of the individual's red blood cells, which is typically 50-55 days). People whose Hb A1c runs 6.0% or less show good longer-term glucose control. Hb A1c values which are more than 7.0% are elevated. This test is especially useful for diabetics.

This Hb A1c level is only useful in individuals who have red blood cells (RBCs) with normal survivals (i.e., normal half-life). In individuals with abnormal RBCs, whether due to abnormal hemoglobin molecules (such as Hemoglobin S in Sickle Cell Anemia) or RBC membrane defects - or other problems, the RBC half-life is frequently shortened. In these individuals an alternative test called "fructosamine level" can be used. It measures the degree of glycation (glucose binding) to albumin, the most common blood protein, and reflects average blood glucose levels over the previous 18-21 days, which is the half-life of albumin molecules in the circulation.

Hemoglobin in the biological range of life

Hemoglobin is by no means unique to vertebrates; there are a variety of oxygen transport and binding proteins throughout the animal (and plant) kingdom. Other organisms including bacteria, protozoans and fungi all have hemoglobin-like proteins whose known and predicted roles include the reversible binding of gaseous ligands. Since many of these proteins contain globins, and also the heme moiety (iron in a flat porphyrin support), these substances are often simply referred to as hemoglobins, even if their overall tertiary structure is very different from that of vertebrate hemoglobin. In particular, the distinction of “myoglobin” and hemoglobin in lower animals is often impossible, because some of these organisms do not contain muscles. Or they may have a recognizable separate circulatory system, but not one which deals with oxygen transport (for example, many insects and other arthropods). In all these groups, heme/globin containing molecules (even monomeric globin ones) which deal with gas-binding are referred to as hemoglobins. In addition to dealing with transport and sensing of oxygen, these molecules may also deal with NO, CO2, sulfide compounds, and even O2 scavenging in environments which must be anaerobic. They may even deal with detoxification of chlorinated materials in a manner analogous to heme-containing P450 enzymes and peroxidases.

The structure of hemoglobins varies across species. Hemoglobin occurs in all kingdoms of organism, but not in all organisms. Single-globin hemoglobins tend to be found in primative species such as bacteria, protozoa, algae, and plants. Nematode worms, moluscs and crustaceans, however, many contain very large multisubunit molecules much larger than those in vertebrates. Particularly worth noting are chimeric hemoglobins found in fungi and giant annelids, which may contain both globin and other types of proteins [PMID 11274340]. One of the most striking occurrences and uses of hemoglobin in organisms occurs in the (up to) 2.4 meter giant tube worm (Riftia pachyptila also called Vestimentifera) which populates ocean volcanic vents at the sea floor. These worms have no digestive tract, but instead contain a population of bacteria constituting half the organism’s weight, which react H2S from the vent and O2 from the water to produce energy to make food from H2O and CO2. These organisms end with a deep red fan-like structure ("plume") which extends into the water and which absorbs H2S and O2 for the bacteria, and also absorbs CO2 for use as synthetic raw material (after the manner of photosynthetic plants). The bright red color of the structures results from several extraordinarily complex hemoglobins found in them which contain up to 144 globin chains (presumably each including associated heme structures). These tube worm hemoglobins are remarkable for being able to carry oxygen in the presence of sulfide, and indeed to also carry sulfide, without being completely "poisoned" or inhibited by this molecule, as hemoglobins in most other species are [PMID 8621529]. See also [PMID 15265029].

Other biological oxygen-binding proteins

Myoglobin: Found in the muscle tissue of many vertebrates including humans (gives muscle tissue a distinct red or dark gray color). Is very similar to hemoglobin in structure and sequence, but is not arranged in tetramers, it is a monomer and lacks cooperative binding and is used to store oxygen rather than transport it.

Hemocyanin: Second most common oxygen transporting protein found in nature. Found in the blood of many arthropods and molluscs. Uses copper prosthetic group instead of iron heme groups and is blue in color when oxygenated.

Hemerythrin: Some marine invertebrates and a few species of annelid use this iron containing non-heme protein to carry oxygen in their blood. Appears pink/violet when oxygenated, clear when not.

Chlorocruorin: Found in many annelids, and is very similar to Erythrocruorin, but the heme group is significantly different in structure. Appears green when deoxygenated and red when oxygenated.

Vanabins: Also known as Vanadium Chromagen are found in the blood of Sea squirt and are hypothesised to use the rare metal Vanadium as its oxygen binding prosthetic group, but this hypothesis is unconfirmed.

Erythrocruorin: Found in many annelids, including earthworms. Giant free-floating blood protein, contains many dozens even hundreds of Iron heme containing protein subunits bound together into a single protein complex with a molecular masses greater than 3.5 million daltons.

Pinnaglobin: Only seen in the mollusk Pinna squamosa. Brown manganese-based porphyrin protein.

Leghemoglobin: In leguminous plants, such as alfalfa or soybeans, the nitrogen fixing bacteria in the roots are protected from oxygen by this iron heme containing, oxygen binding protein.

See also

  • Hemoprotein
  • Hemocyanin
  • Chlorophyll
  • Hemoglobin A1C
  • Hemoglobin S
  • Hemoglobin C
  • Hemoglobin F
  • Hemoglobin A2


  • Campbell, Mary K. (1999), Biochemistry (Third Edition), Harcourt College Publishers, ISBN 0-03024-426-9.
  • Reece, JB (2005), Biology (Seventh Edition), Benjamin Cummings, ISBN 0-8053-7171-0.
  • Di Maio, M, Pisano, C & Tambaro, R, Greggi S, Casella G, Laurelli G, Formato R, Iaffaioli RV, Perrone F & Pignata S (May 1, 2006), "The prognostic role of pre-chemotherapy hemoglobin level in patients with ovarian cancer", Front Biosci, vol. 11:1585-90. PMID 16368539.
  • Eshaghian, S, Horwich, TB & Fonarow, GC (January 2006), "An unexpected inverse relationship between HbA1c levels and mortality in patients with diabetes and advanced systolic heart failure", Am Heart J, vol. 151(1):91. PMID 16368297.
  • Hardison, RC (June 11, 1996), "A brief history of hemoglobins: plant, animal, protist, and bacteria", Proc Natl Acad Sci USA. PMID 8650150.
  • Kneipp, J, Balakrishnan, G & Chen, R, Shen TJ, Sahu SC, Ho NT, Giovannelli JL, Simplaceanu V, Ho C, Spiro TG (November 22, 2005), "Dynamics of Allostery in Hemoglobin: Roles of the Penultimate Tyrosine H bonds", J Mol Biol. PMID 16368110.
  • Ganong, William F. (March 17, 2003), Review of Medical Physiology (Twenty-First Edition), Lange Medical Books (McGraw-Hill Medical Publishing Division), ISBN 0-07140-236-5.
